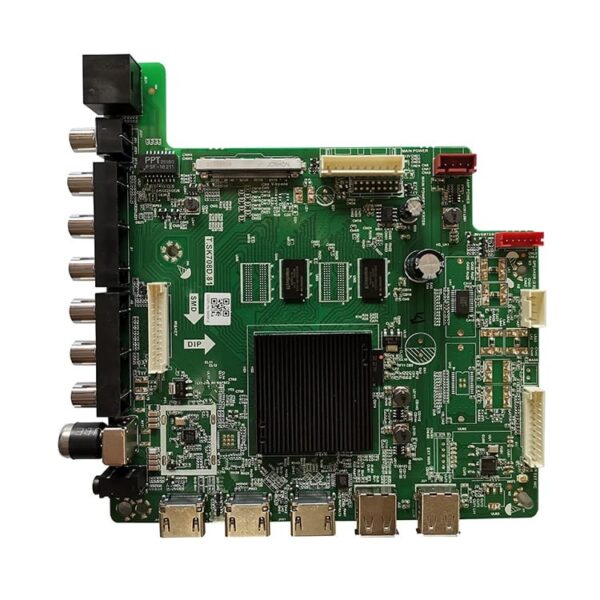

T.SK708D.81 1G 8G 4K Android Smart Tv Firmware
Interface | Dual LVDS(8bit) | ||
Max Resolution | 3840*2160 | ||
VIDEO INPUT | TV(Details in 3.1) | ATV(PAL)/DTV(DVB-T/C/T2) | |
CVBS | Video System | PAL/NTSC | |
Video level | 1.0 Vp-p±10% | ||
HDMI | 480i, 480p, 720p, 1080i, 1080p, 2160P | ||
CEC, *ARC(HDMI 3) | |||
HDCP Version | 2.2 | ||
AUDIO INPUT | CVBS | L/R RCA input | 0.2 ~ 2.0VRMS |
Component | |||
AUDIO OUTPUT | Earphone | Earphone output | 130 ~ 150mVRMS |
COAX | PCM/RAW | ||
Frequency response | Speaker | 100Hz-15KHz @±3dB(1KHz 0dB reference signal) Earphone | |
Earphone | 150Hz-15KHz @±3dB(1KHz 0dB reference signal) | ||
Max Output power | 2×15W(8Ω) THD+N<10%@1KHz (Power Supply:12V,Audio Input: 0.5VRMS) 2×8W(8Ω) THD+N<10%@1KHz (Power Supply:24V,Audio Input: 0.5VRMS) | ||
POWER TO PANEL | 12V | ||
RJ45 NETWORK | 10/100M auto-identification and DHCP | ||
T.SK708D.81 1G 8G Usb Updatable Software Firmware Available
